Exchange 2003

Create the Test Mailbox

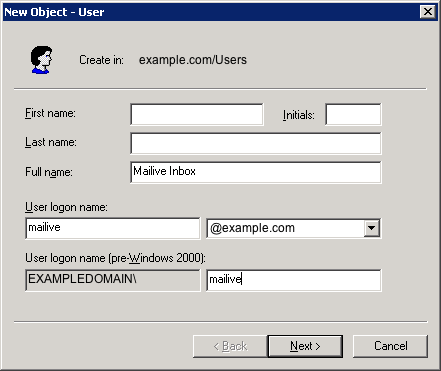

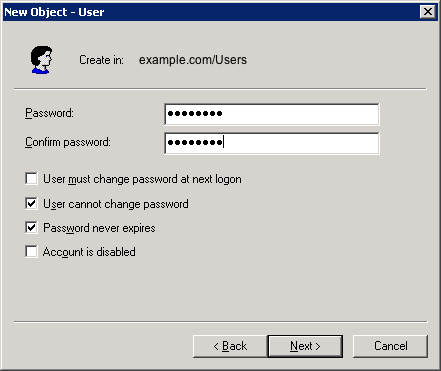

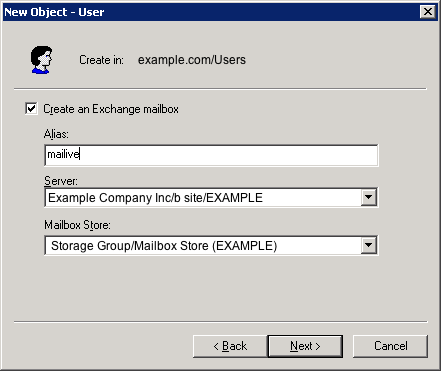

Create an Active Directory User with Exchange Mailbox.

This will enable basic monitoring for SMTP connectivity and the Exchange server where the mailbox is located. To monitor multiple servers create one mailbox on each server to be monitored and create a separate Mailive! tests for each.

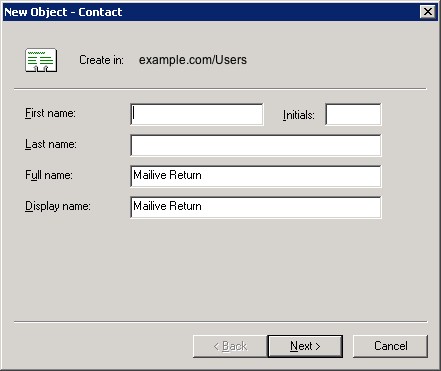

Create the Return Contact

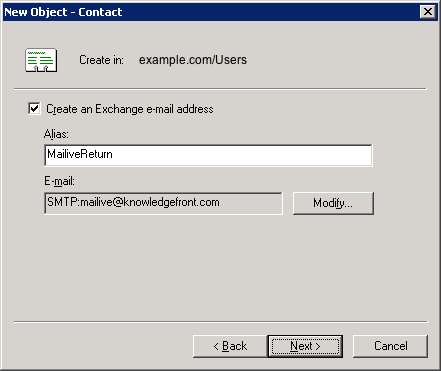

1. Create one contact for Mailive return address with SMTP address of mailive@knowledgefront.com

   Note: If mailive@knowledgefront.com is already in use feel free to use mailive01@knowledgefront.com, mailive02@knowledgefront.com, etc..





2. After all is set and tested you may want to go back and set both the mailbox and the contact to be hidden from the global address list.

Allowing test messages to be forwarded

OPTIONAL STEP: You do not need to do this step if you allow auto forward by default.

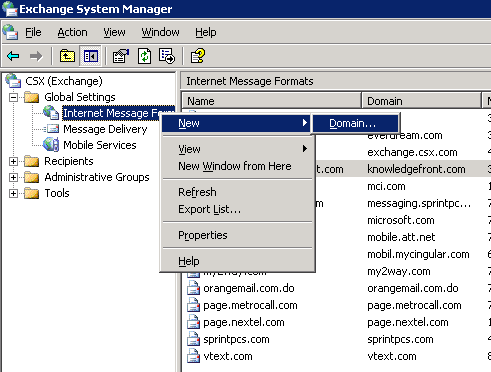

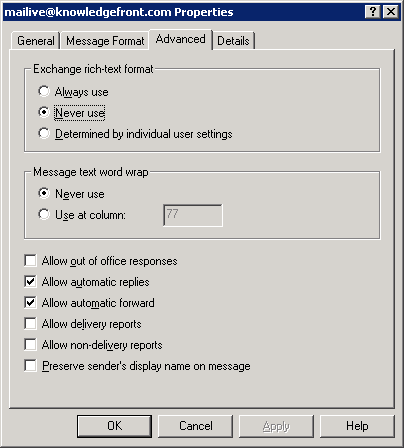

Create a new domain in the "Internet Message Formats". This will allow you to check allow auto forwarding for the knowledgefront.com domain.

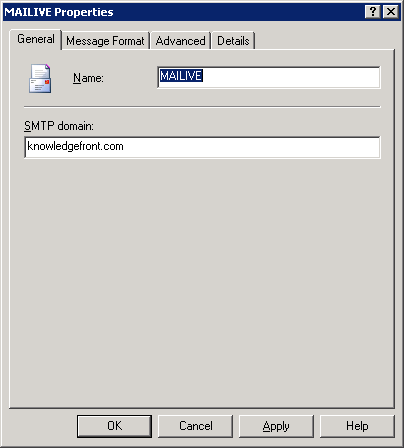

Setup your new domain as follows:

Configure Outlook and create Rule

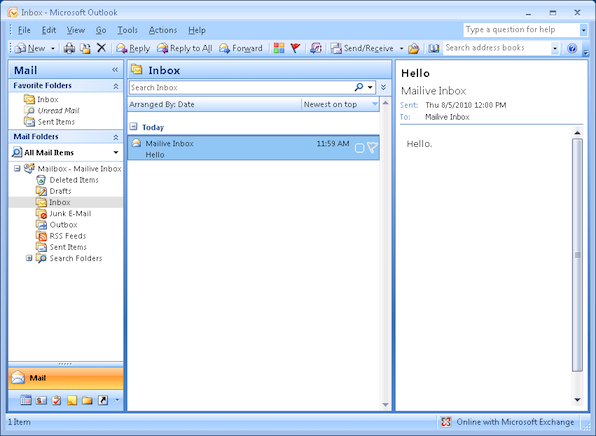

1. Configure and Outlook client to open the previously created Mailive Inbox. see Create the Test Mailbox from above

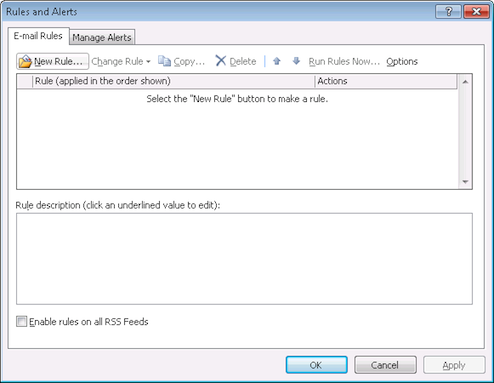

2. Go to Tools, then Rules and Alerts

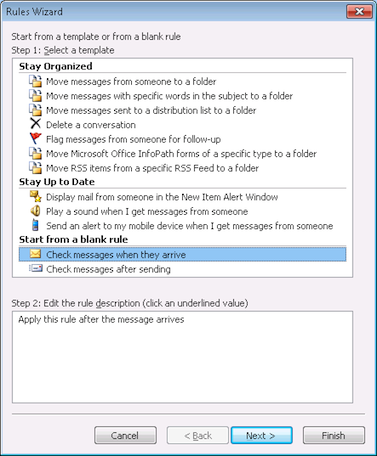

3. Create a new Rule. Start with a blank rule, and select "Check messages when they arrive"

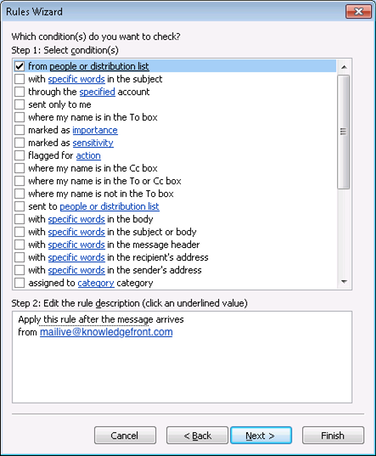

4. Select "from people or distribution list" and edit the value to be "mailive@knowledgefront.com"

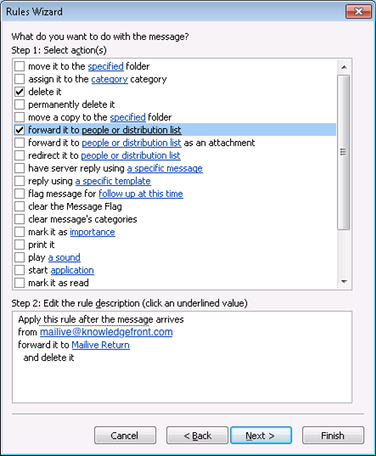

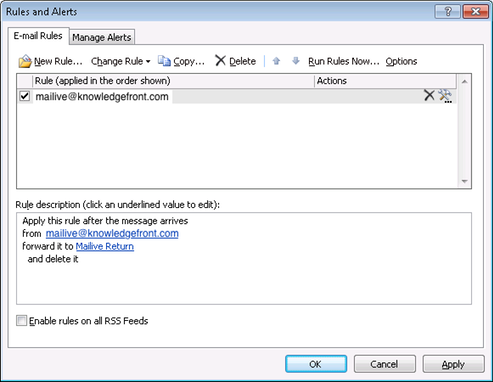

5. Set the rule to forward it to the previously created contact, Mailive Return, and then delete the message. Be sure to check with your organizations policies for retention of deleted items.
