Mailive! Exchange 2007 Setup

  1. First a mailbox must be created to receive the incoming messages from Mailive!

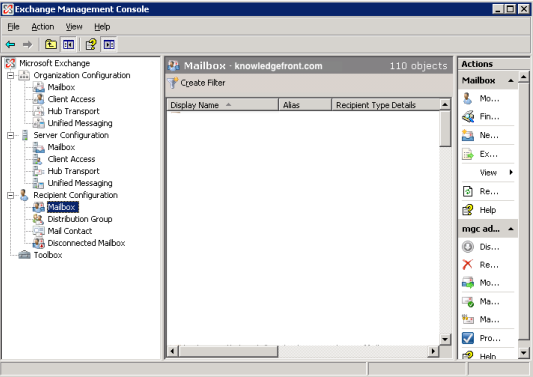

    Open your Exchange Management Console (EMC) and under Recipient Configuration select Mailbox

    shot1

  2. Right click and select New Mailbox

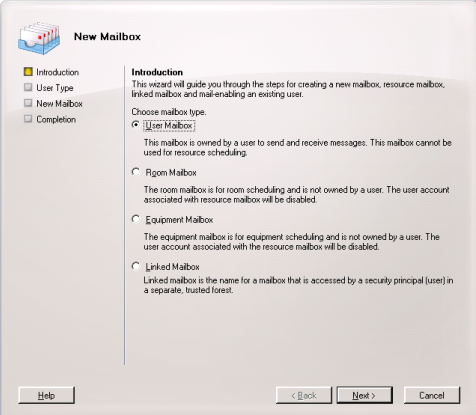

  3. Select User Mailbox

    shot2

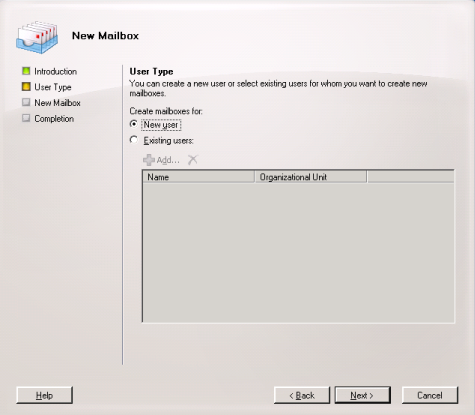

  4. Select New User

    shot3

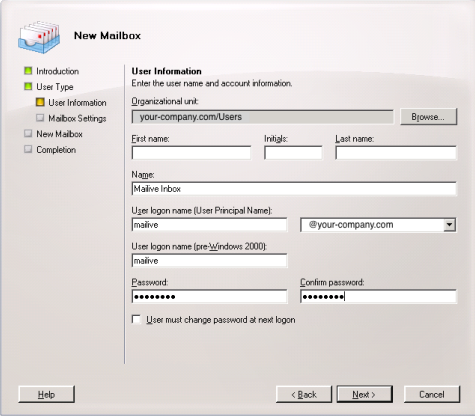

  5. Create a user.

    shot4

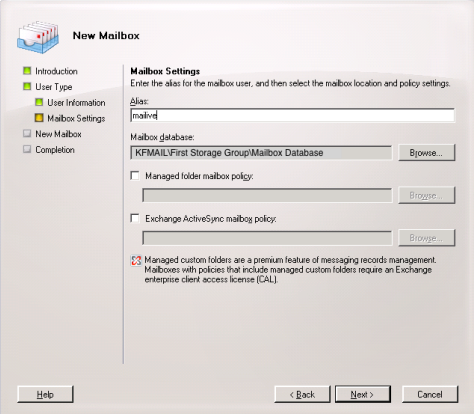

  6. Assign alias and select mailbox database on Exchange 2007 server

    shot5

  7. Next, a contact must be created in the Exchange Organization

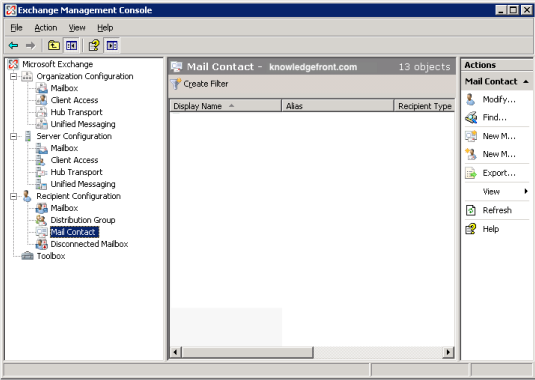

    Under Recipient Configuration select Mail Contact

    shot6

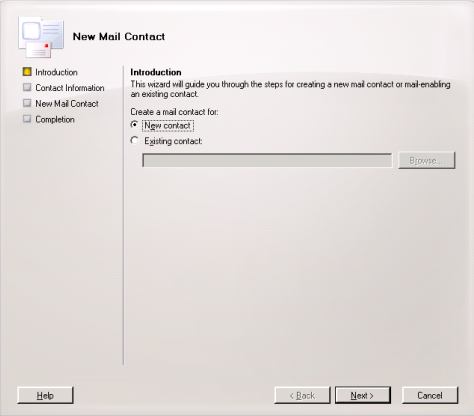

  8. Select New Contact

    shot7

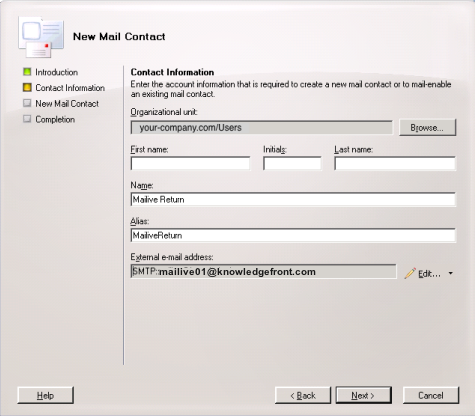

  9. Give the contact a name and alias. Assign the External e-mail address to be type SMTP and make the address mailive@knowledgefront.com

    shot8

  10. Now assign the Contact to be the forwarder for the mailbox

    Under the properties for the Mailbox, select the Mail Flow Settings tab and select Delivery Options

    shot9

  11. Check the Forward to: box and select the previously created Contact as the forwarding address

    shot10
