Contact with SMTP Return

  1. First a mailbox must be created to receive the incoming messages from Mailive!

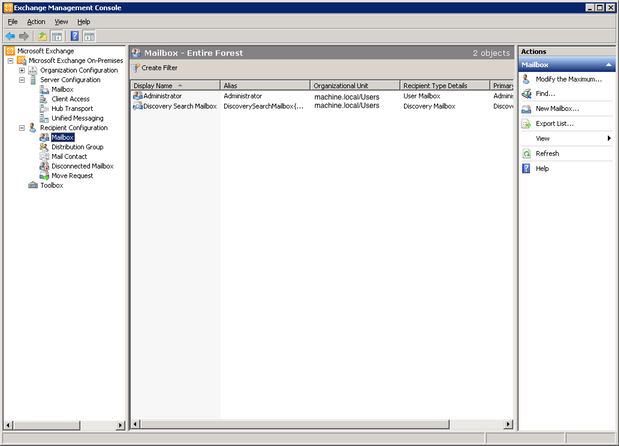

    Open your Exchange Management Console (EMC) and under Recipient Configuration select Mailbox

    shot1

  2. Right click and select New Mailbox

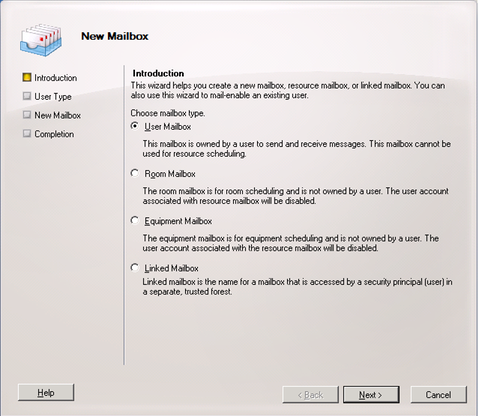

  3. Select User Mailbox

    shot2

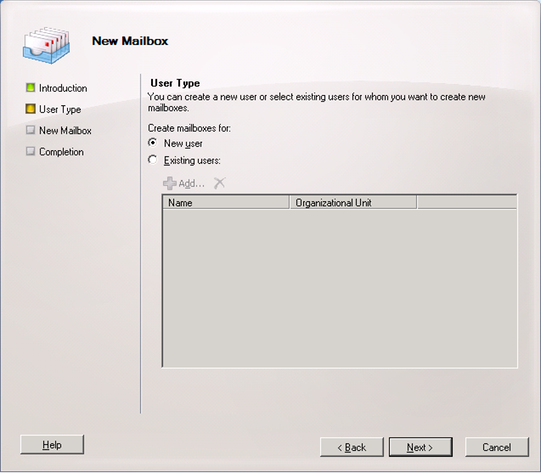

  4. Select New User

    shot3

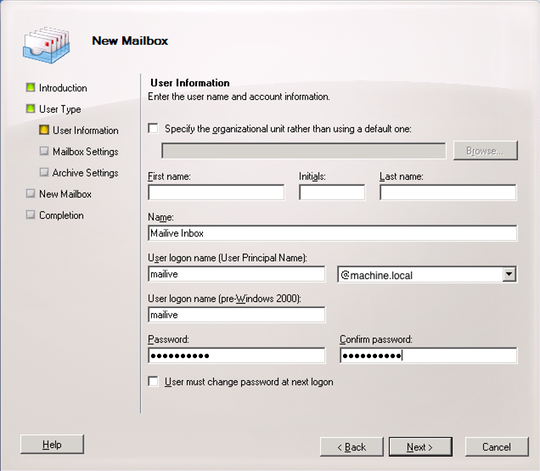

  5. Create a user.

    shot4

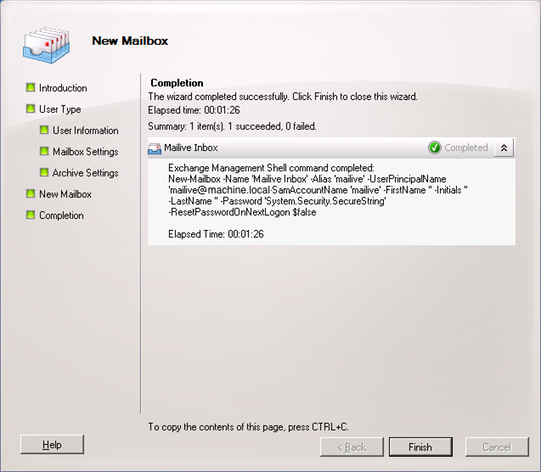

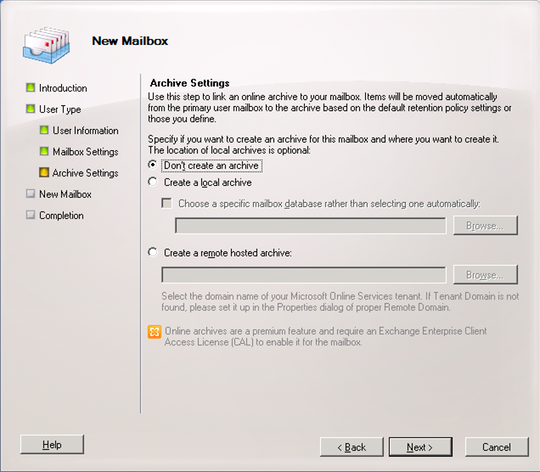

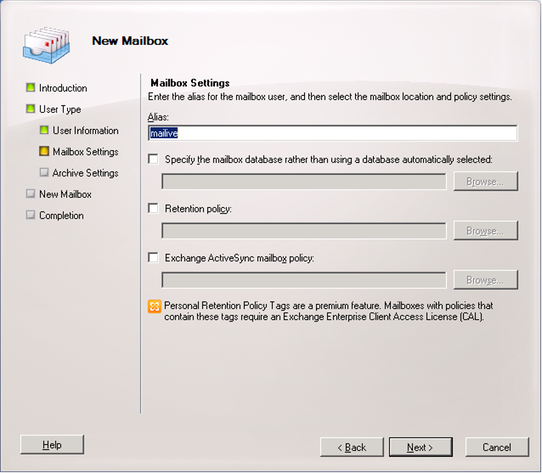

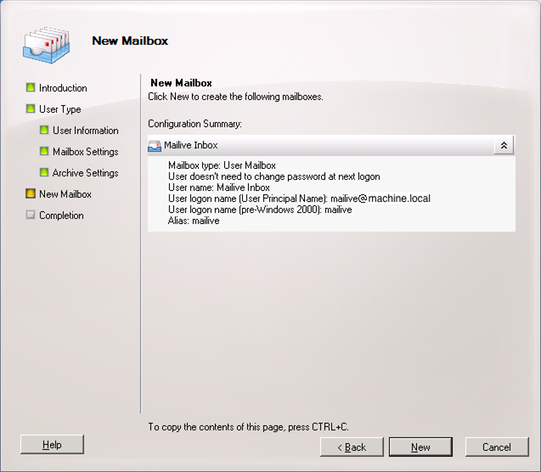

  6. Assign alias and select mailbox database on Exchange 2010 server

    shot5 shot6 shot7 shot8

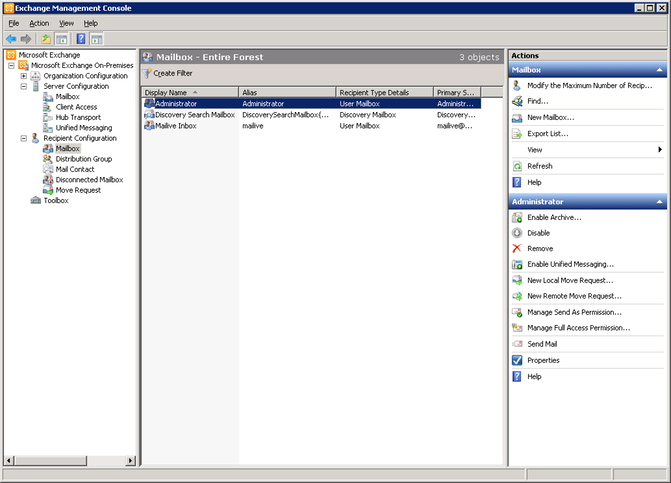

  7. Next, a contact must be created in the Exchange Organization

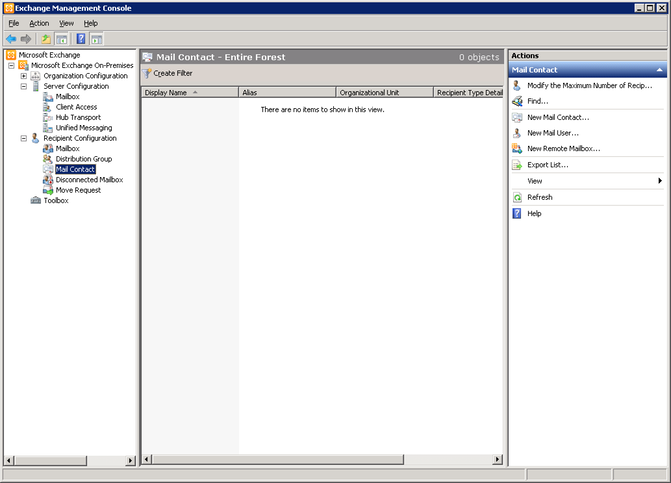

    Under Recipient Configuration select Mail Contact

    shot10

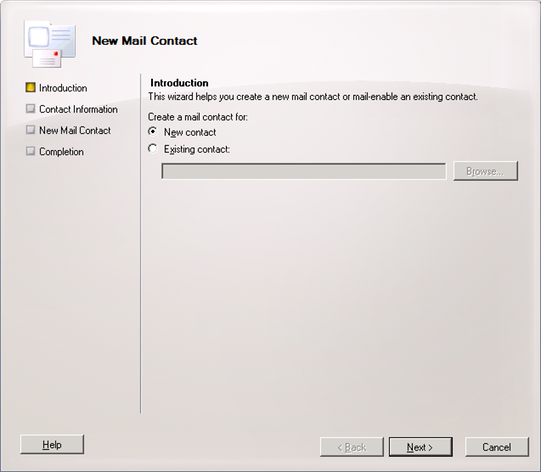

  8. Select New Contact

    shot11

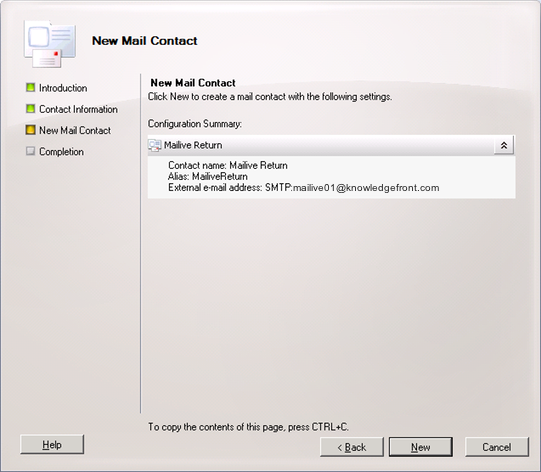

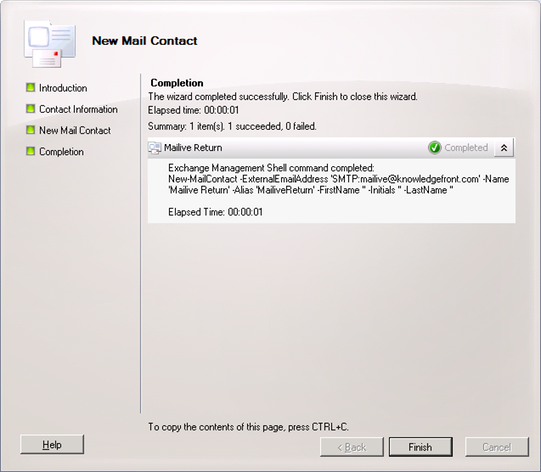

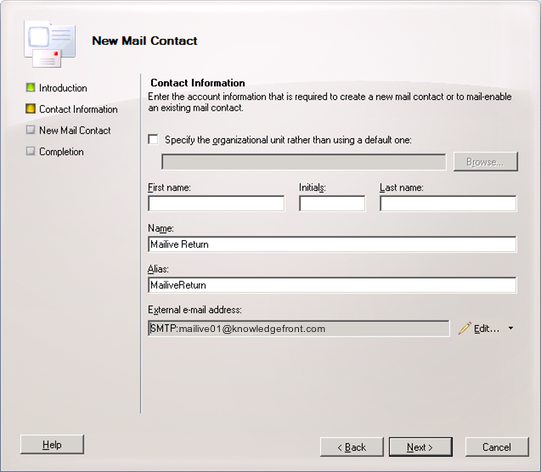

  9. Give the contact a name and alias. Assign the External e-mail address to be type SMTP and make the address mailive@knowledgefront.com

    shot12 shot13 shot14

  10. Now assign the Contact to be the forwarder for the mailbox

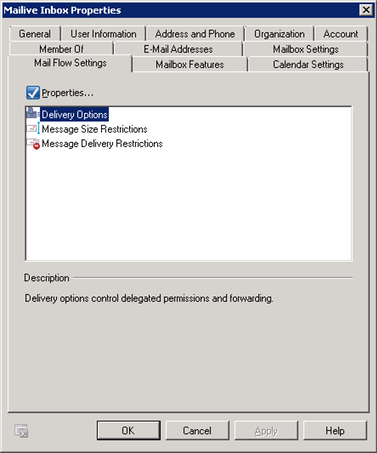

    Under the properties for the Mailbox, select the Mail Flow Settings tab and select Delivery Options

    shot15 shot16

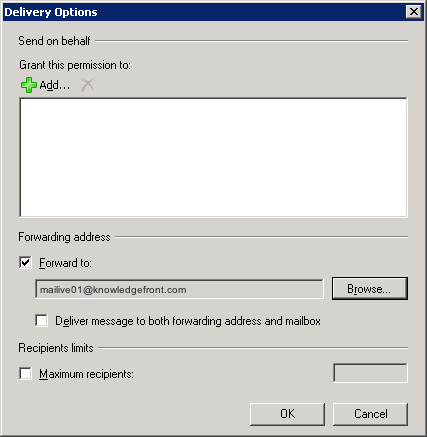

  11. Check the Forward to: box and select the previously created Contact as the forwarding address

    shot17
